Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: sunivision/OEM
  • Model Number: AP-KIT4B201
  • Image Sensor: 1 /3'' Color CMOS with IR-Cut
  • Resolution: 1920*1080
  • Camera: IR waterproof camera
  • Lens: 3.6mm
  • IR LEDs Amount: 24pcs, 5mm LEDs
  • IR Wavelength: 850nm
  • IR Distance: up to 65ft (20m)
  • Waterproof Level: IP66
  • Power Supply: DC12V/500mA
  • Material: Aluminum casing

Packaging & Delivery

Packaging Details Neutral kit packing
Delivery Time SEVEN DAYS AFTER PAYMENT
Product Description
The camera is equipped with 24 infrared LEDs, which will activate when it is dark or low light to display black and white night vision capability up to 65 feet.
High resolution 1080P sensors provide clear images, even in the dark
The camera are used more often in many indoor areas such as office,home ,factories etc.
Easily be viewed through mobile phone at anytime or anywhere.

Camera main Feature:
HD 1080P Resolution
High-Performance Night Vision
HAD IR-CUT,More Clear/More Real
HD Both day and night,Camera
Cameras provide color video during the daytime, black and white at night





Camera Specification:
Image Sensor: 1 /3'' Color CMOS with IR-Cut
Horizontal Resolution: 1080P
Lens: 3.6mm
IR LEDs Amount: 24pcs, 5mm LEDs
IR Wavelength: 850nm
IR Distance: up to 65ft (20m)
Waterproof Level: IP66
Power Supply: DC12V/500mA
Material: Aluminum casing
DVR Specification:


Model

AP-D7004T-MH-E

System

Main processor

Hi3520D V300

Video

video code

H.264

Encode

4*1080P@15fps

Decode

4*1080P@15fps

Multi-mode

input

analog: 4*1080P@15fps;

Analog+IP:4*1080N(Analog)+4*960P(IP)  Only IP:4*5M;9*1080P;16*1080P;16*960P

agreement

onvif

support

Audio

Audio compression

G.711A

Intercom

support

Recording and Playback

Record mode

Manual>alarm>motion detection>timing

Playback Channels

4

Storage and backup

Backup mode

Network backup,USB HDD, USB writer,SATA writer

Interface

Video input

4 BNC

Video output

1ch VGA,1ch HDMI

Audio input

4ch RCA

Audio output

1ch RCA

Alarm input

No

Alarm output

No

Network interface

RJ45 10M/100M Adaptive Ethernet port

PTZ control

One RS485; support multiple PTZ protocols

USB

2 USB ports

Hard disk

1 SATA(Each maximum support 6T )

Wireless

3G,WIFI(expand via USB)

Other

Power

12V/2A

Weight



dimension

255mm(length)*236mm(width)* 44mm(height)

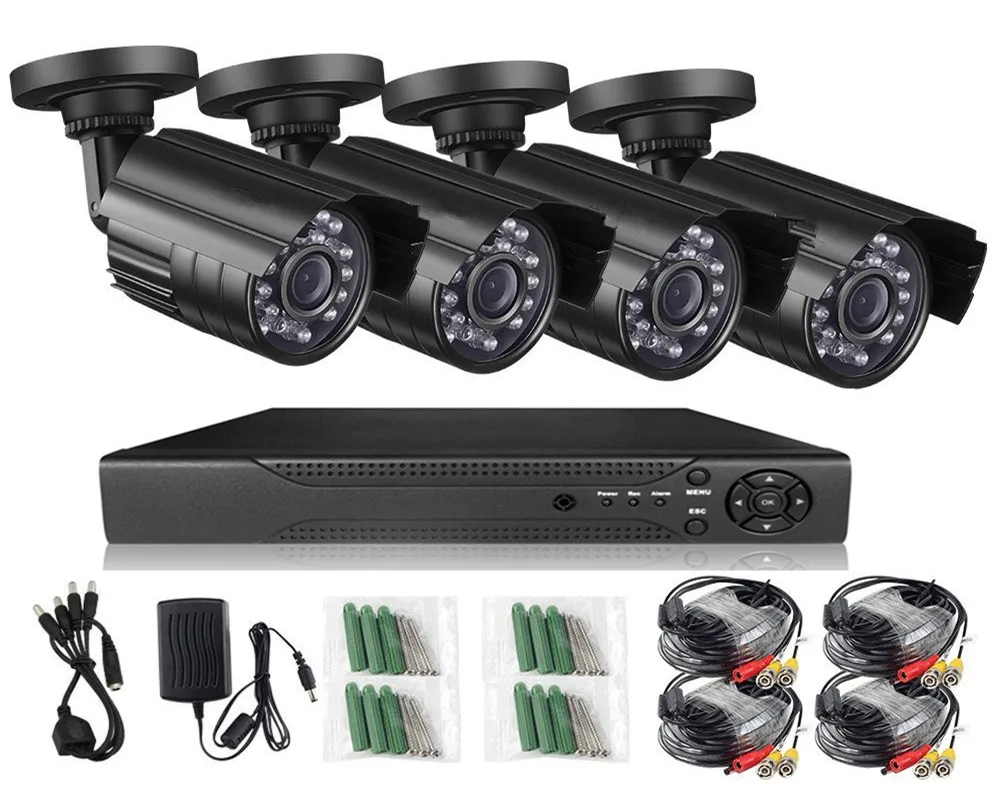

Package Contents:
4 x 1/3 inch color CMOS 1080P 2MP Camera
4 x 60FT BNC+DC CCTV cable
1 x 12V/3000mA power supply
1 x 1 to 4 power splitter cable
4 x Mounting screw bag
1 x Instruction manual
4x Warning sticker

Lens options



Video Comparison



Application



Certifications



Process



FAQ

Q.May I print our company logo on package box and camera and DVR?

A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.

Q.Do you provide warranty for your products?

A:Yes,we promise two years warranty for all our products.

Q.What is your method of payment?

A: T/T,  Paypal, Western Union, MoneyGram, L/C is welcome, Alibaba Trade Assurance order welcomed.

Q.What is Minimum Order Quantity?

A:Minimum Order Quantity is 20pcs,but sample order is welcome.
