Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Sunivision
  • Model Number: AP-KIT8A131
  • Type: Analog Camera
  • Style: Dome Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Vandal-proof
  • VIDEO INPUT (BNC): 8
  • RECORD: 8*1080N:30fps/ch
  • PLAYBACK: 4*1080N:30fps/ch
  • VIDEO OUTPUT: VGA HDMI
  • Image Resolution: 720p
  • Pixels: 1.3 Pixels
  • Infrared LED: F5X24PCS
  • Weatherproof Housing: YES, IP66
  • Focus Length: Board Lens 2.8mm/M12 F2.0
  • Warranty: 2 year warranty

Packaging & Delivery

Packaging Details: Neutral packing for security camera system

ahd dvr kit 24pcs infrared LED 720p 1.3 pixels analog cctv dome cmos camera



Product Description
Product description:

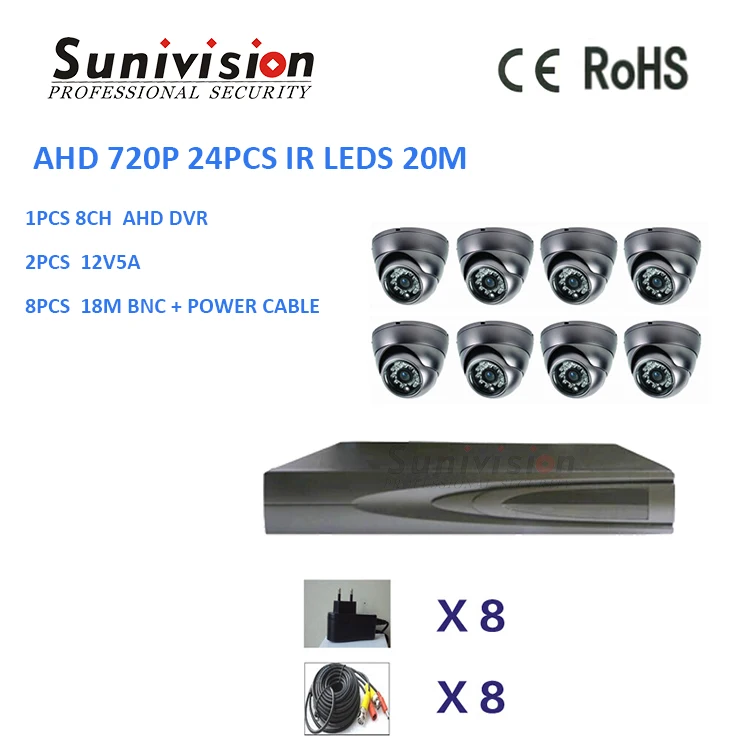

(1) 8pcs AP-FB14SGH-AHD131 AHD 720P AR0130+NVP2431 metal dome camera 24pcs IR leds 20m, 3.6mm lens
(2) 1pcs AP-DHK08-K2 8CH AHD DVR
(3) 2PCS AP-D006 12V5A
(4) 8pcs 18m BNC + Power cable (AP-V018-13)

Model NO.

AP-14SGH-AHD131

AHD Camera

Image Sensor

AR0130

DSP

NVP2431

Image Resolution

PAL: 25fps@720P(1280×720); NTSC: 30fps@720P(1280×720)

Effective Pixels

 1280(H)*960(V) , 1.3MP

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

Usable Illumination

0.001Lux

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Video Output Mode

AHD/CVBS (960H) (BNC)

Transmission Distance

Over 500m via 75-3 coaxial cable

Lens



Focus Length

Board Lens 2.8mm/M12 F2.0

Focus Control

Fixed

Lens Type

Fixed

Pixels

1.3M Pixels

Auto Iris Support

NO

Night Vision



Infrared LED

F5X24PCS

Infrared Distance

15M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features



Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

EN, CN, DE, FRA, IT, ES,

PL, RU, PT, NL, TR

White Balance

Auto/Manual

Gain Control

Auto

Noise Reduction

3D NR

Picture Adjustment

Yes

OSD Support

Yes

General



Weatherproof Housing

YES, IP66

Anti-cut Bracket

YES,

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 400mA

Dimension

550x440x240mm

Weight

 350g

Application
HOT SALE
Certifications
Factory Shots
Company Information

Sunivision Technology Development Co., Ltd. is a leading and professional CCTV manufacturer located in Guangzhou, China. Sunivision was established in 2008, with 2000 square meter factory and 150 employees including 5 R&D engineers and 10 person for quality control, 15% of the year sales volume will be put into R&D, 2-5 New products will be come out every month.

Sunivision sepcialized in researching, producing and exporting CCTV Analog Cameras, AHD Cameras, Digital Cameras (IP Camera, CVI Camera, TVI Camera etc.) and Stnad-alone DVRs, CVI DVR, AHD DVR, NVR, providing the most stable digital security solutions.
